Vlier
5/16-18 in Spring Plunger - Vlier SSL312
MFR# SSL312
$14.37List $18.04
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

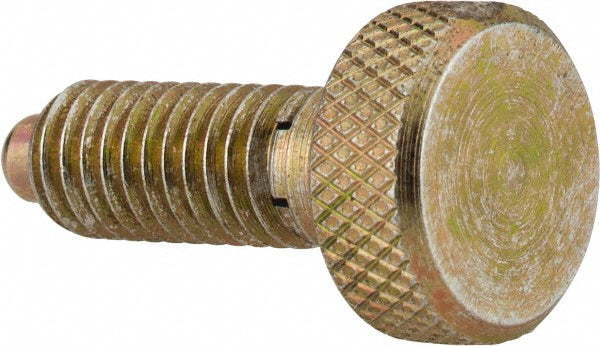

The Vlier SSL312 is a 5/16-18 in stainless steel spring plunger.
Specifications
Body length0.7600
Final end force6lb
Final end force lb6.00
Head diameter0.63in
Head height0.25in
Head shoulder height0.3750
Initial end force1lb
Initial end force lb1.00
Knob styleKnurled
Length under head shoulder0.6250
Locking elementNo
MaterialStainless Steel
Maximum plunger diameter0.1540
Plunger diameter tolerance+0.001/-0.000
Plunger length1.0000
Plunger projection0.1880
Plunger typeNon-Locking
Thread length0.625in
Thread size5/16-18 in
