Vlier

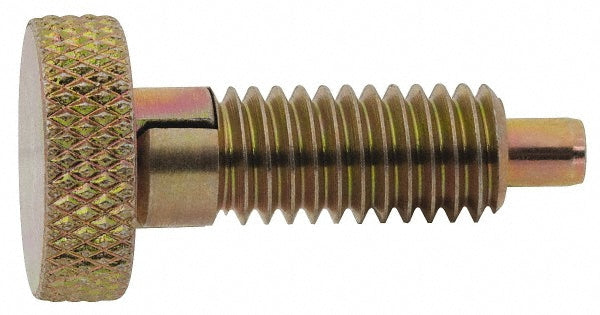

M10x1.5 Spring Plunger - Vlier SSLFM10P
MFR# SSLFM10P
$27.46List $34.47
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SSLFM10P is a M10x1.5 stainless steel spring plunger.
Specifications
Body length19mm
Body length (mm)19.00
Final end force13.34N; 3lb
Final end force lb3.00
Final end force n13.34
Head diameter0.75in; 19.05mm
Head height0.33in; 8.38mm
Hex size10mm
Hex size (mm)10.00
Initial end force2.22N; 0.5lb
Initial end force lb0.50
Initial end force n2.22
Knob styleKnurled
Length under head shoulder0.9700
Locking elementYes
MaterialStainless Steel
Maximum plunger diameter0.1900
Plunger length1.3000
Plunger projection0.2200
Plunger typeLocking
Thread length0.75in; 19.05mm
Thread sizeM10x1.5
