Vlier
5/16-18 Spring Plunger - Vlier SSM57N
MFR# SSM57N
$5.35List $6.60
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

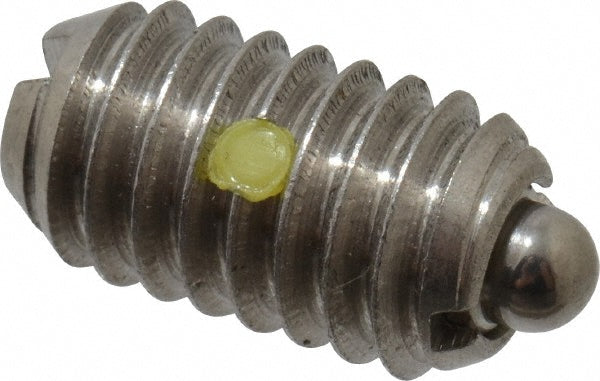

The Vlier SSM57N is a 5/16-18 stainless steel spring plunger.
Specifications
ApplicationHigh End Force; Restricted Space
Body length0.5620
Body materialStainless Steel
Final end force lb4.00
Initial end force lb1.25
Locking elementYes
Maximum plunger diameter0.1350
Nose materialStainless Steel
Plunger length0.5620
Plunger length typeStubby
Plunger projection0.0840
Thread length0.5620
Thread size5/16-18
