Vlier

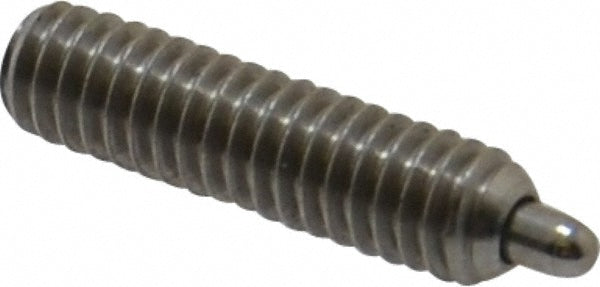

#8-32 Spring Plunger - Vlier SSPH50
MFR# SSPH50
$6.23List $7.81
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SSPH50 is a #8-32 stainless steel spring plunger.
Specifications
Body length in5/8
Body materialStainless Steel
Final end force lb7.30
Hex size0.0630
Initial end force lb2.70
Locking elementNo
Maximum plunger diameter0.0700
Middle end force5.00
Minimum plunger diameter0.0690
Nose materialStainless Steel
Plunger length in5/8
Plunger length typeStandard
Plunger projection in3/32
Thread length in5/8
Thread size#8-32
