Vlier
5/16-18 Spring Plunger - Vlier SSSD57
MFR# SSSD57
$7.06List $8.87
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

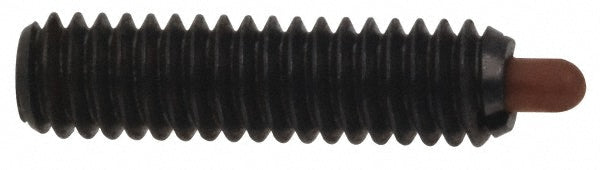

The Vlier SSSD57 is a 5/16-18 stainless steel spring plunger.
Specifications
Body length in1
Body materialStainless Steel
Final end force lb4.50
Initial end force lb1.50
Locking elementNo
Maximum plunger diameter0.1350
Minimum plunger diameter0.1330
Nose materialDelrin
Plunger length in1
Plunger length typeStandard
Plunger projection in3/16
Thread length in1
Thread size5/16-18
