Walter

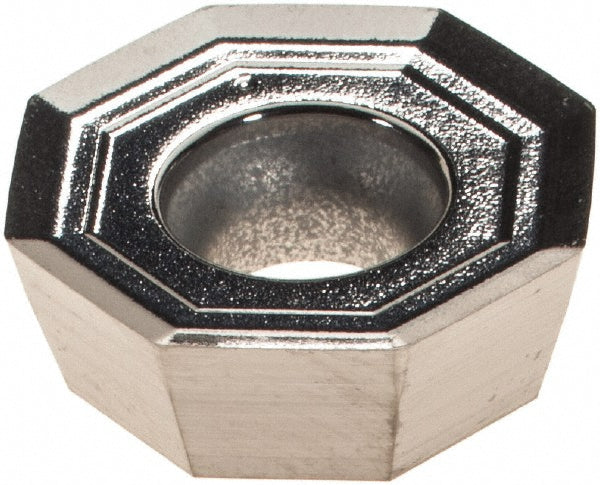

ODHT0605ZZN-G88 WK10 Solid Carbide Insert, Grade WK10 - Walter 5004795
MFR# 5004795ISO/ANSI# ODHT0605ZZN-G88 WK10Cat# ODHT0605ZZN-G88Series ODHT
$26.95List $34.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeOctagon
GradeWK10
MaterialSolid Carbide
Description
The Walter 5004795 is a ODHT0605ZZN-G88 WK10 solid carbide indexable insert, grade WK10. Suited for non-ferrous metal.
Specifications
Ansi codeODHT0605ZZN-G88 WK10
Chip breakerG88
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityF2010; M5003
Cutting edge effective length0.2591
Cutting edge styleSharp
Included angle degree135
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code0605
Insert styleODHT
Iso codeODHT0605ZZN-G88 WK10
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberODHT0605ZZN-G88
Manufacturer gradeWK10
Material applicationNon-Ferrous Metal
Material gradeN10
Maximum depth of cut0.2590
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.2590
