Walter

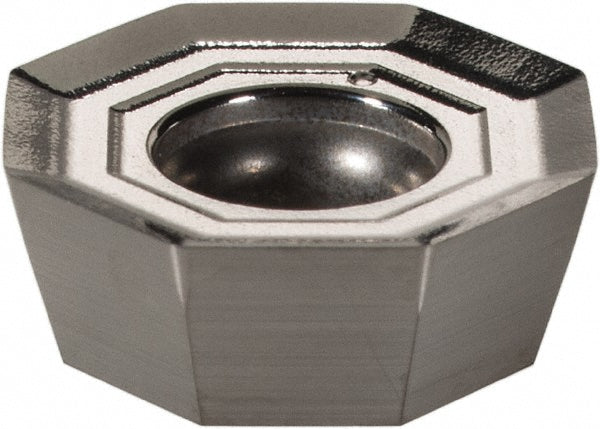

ODHT0504ZZN-G88 WK10 Solid Carbide Insert, Grade WK10 - Walter 5004797
MFR# 5004797ISO/ANSI# ODHT0504ZZN-G88 WK10Cat# ODHT0504ZZN-G88Series ODHT
$20.74List $26.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeOctagon
GradeWK10
MaterialSolid Carbide
Description
The Walter 5004797 is a ODHT0504ZZN-G88 WK10 solid carbide indexable insert, grade WK10. Suited for non-ferrous metal.
Specifications
Ansi codeODHT0504ZZN-G88 WK10
Chip breakerG88
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityM5004
Cutting edge effective length0.2071
Cutting edge styleSharp
Included angle degree135
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code0504
Insert styleODHT
Iso codeODHT0504ZZN-G88 WK10
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberODHT0504ZZN-G88
Manufacturer gradeWK10
Material applicationNon-Ferrous Metal
Material gradeN10
Maximum depth of cut0.2070
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.2070
