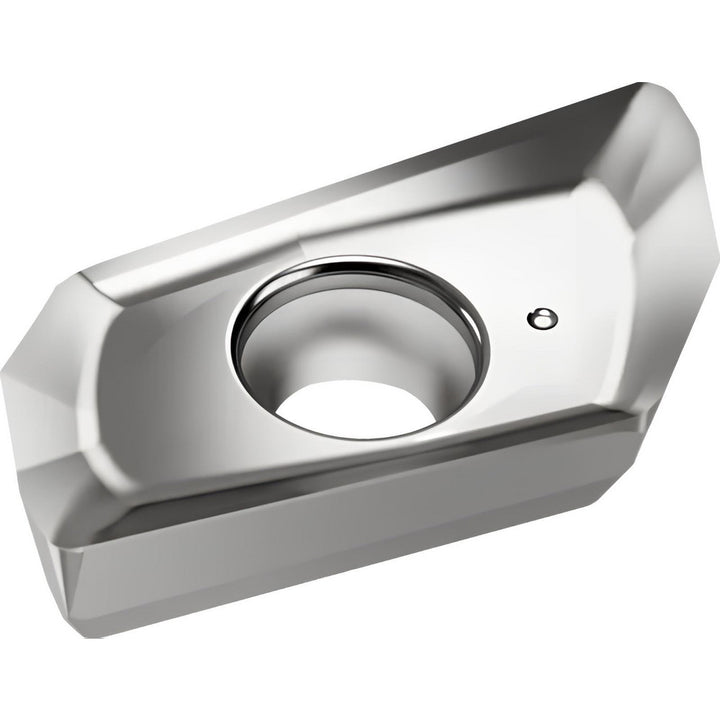

ZDGT150408R-K85 WK10 Solid Carbide Insert, Grade WK10 - Walter 5004877

Walter

ZDGT150408R-K85 WK10 Solid Carbide Insert, Grade WK10 - Walter 5004877

MFR# 5004877ISO/ANSI# ZDGT150408R-K85 WK10Cat# ZDGT150408R-K85Series ZDGT

$29.90List $38.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWK10
MaterialSolid Carbide

Description

The Walter 5004877 is a ZDGT150408R-K85 WK10 solid carbide indexable insert, grade WK10. Suited for non-ferrous metal.

Specifications

Ansi codeZDGT150408R-K85 WK10
Chip breakerK85
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityM2131
Cutting edge styleSharp
Included angle degree90
Inscribed circle0.4130
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150408
Insert styleZDGT
Iso codeZDGT150408R-K85 WK10
Length0.6380
Length range0.6000 to 0.6500
Manufacturers catalog numberZDGT150408R-K85
Manufacturer gradeWK10
Material applicationNon-Ferrous Metal
Material gradeN10
Maximum depth of cut0.6380
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4130
