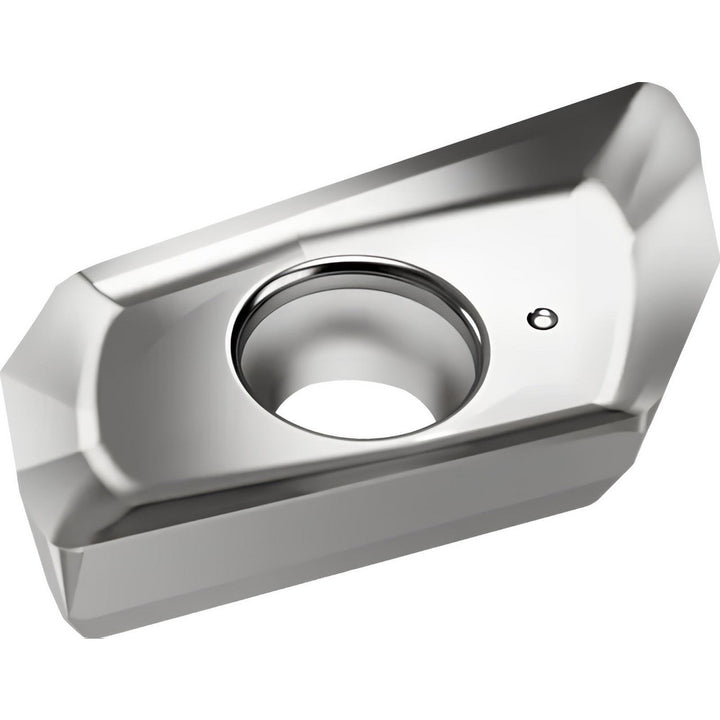

ZDGT200508R-K85 WK10 Solid Carbide Insert, Grade WK10 - Walter 5004889

Walter

ZDGT200508R-K85 WK10 Solid Carbide Insert, Grade WK10 - Walter 5004889

MFR# 5004889ISO/ANSI# ZDGT200508R-K85 WK10Cat# ZDGT200508R-K85Series ZDGT

$40.33List $51.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWK10
MaterialSolid Carbide

Description

The Walter 5004889 is a ZDGT200508R-K85 WK10 solid carbide indexable insert, grade WK10. Suited for non-ferrous metal.

Specifications

Ansi codeZDGT200508R-K85 WK10
Chip breakerK85
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityM2131
Cutting edge styleSharp
Included angle degree90
Inscribed circle0.5510
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size20
Insert size code200508
Insert styleZDGT
Iso codeZDGT200508R-K85 WK10
Length0.8350
Length range0.7000 to 0.9000
Manufacturers catalog numberZDGT200508R-K85
Manufacturer gradeWK10
Material applicationNon-Ferrous Metal
Material gradeN10
Maximum depth of cut0.8350
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.5510
