Walter

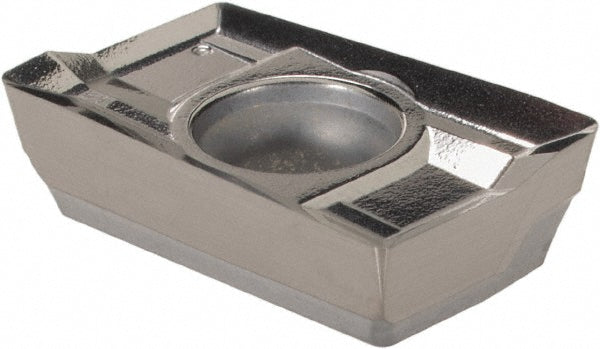

APHT15T3PDR-K88 WK10 Solid Carbide Insert, Grade WK10 - Walter 5004913
MFR# 5004913ISO/ANSI# APHT15T3PDR-K88 WK10Cat# APHT15T3PDR-K88Series APHT
$24.43List $31.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeWK10
MaterialSolid Carbide
Description
The Walter 5004913 is a APHT15T3PDR-K88 WK10 solid carbide indexable insert, grade WK10. Suited for non-ferrous metal.
Specifications
Ansi codeAPHT15T3PDR-K88 WK10
Chip breakerK88
Coating processUncoated
Cutting edge effective length (mm)15.00
Cutting edge styleSharp
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code15T3
Insert styleAPHT
Iso codeAPHT15T3PDR-K88 WK10
Manufacturers catalog numberAPHT15T3PDR-K88
Manufacturer gradeWK10
Material applicationNon-Ferrous Metal
Material gradeN10
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5906
