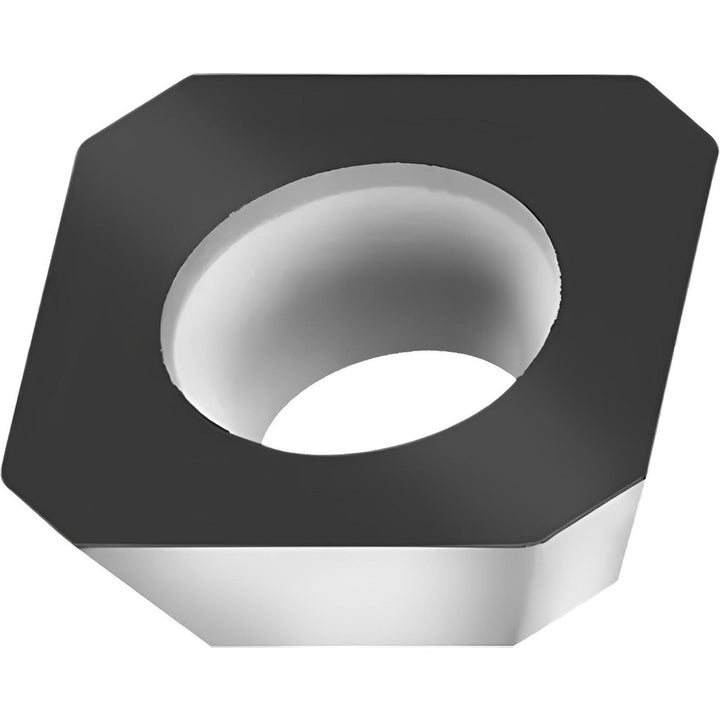

SEHW1204AFN WKM Solid Carbide Insert, Grade WKM - Walter 5004946

Walter

SEHW1204AFN WKM Solid Carbide Insert, Grade WKM - Walter 5004946

MFR# 5004946ISO/ANSI# SEHW1204AFN WKMCat# SEHW1204AFNSeries SEHW

$24.75List $31.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeWKM
MaterialSolid Carbide

Description

The Walter 5004946 is a SEHW1204AFN WKM solid carbide indexable insert, grade WKM. Suited for cast iron.

Specifications

Ansi codeSEHW1204AFN WKM
Chip breakerFlat Top
Coating processUncoated
Corner radius in1/32
Cutting edge effective length0.5000
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSEHW
Iso codeSEHW1204AFN WKM
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEHW1204AFN
Manufacturer gradeWKM
Material applicationCast Iron; Non-Ferrous Metal
Material gradeK20; N20
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakePositive
Relief angle20.00
Secondary workpiece materialNon-Ferrous Metal
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
