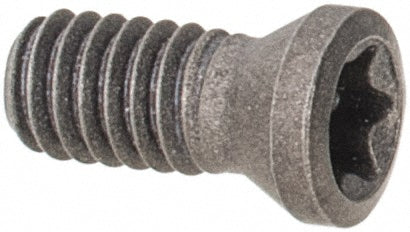

Fasteners for Indexables - Walter 5006854

Walter

Fasteners for Indexables - Walter 5006854

MFR# 5006854Series Capto Stardrill; Walter Boring

$6.37
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Thread sizeM2.5

Description

The Walter 5006854 fasteners for indexables. Series Capto Stardrill; Walter Boring.

Specifications

Complete insert compatibilityCCGT060201-PF2; CCGT060201-PM2; CCGT060202-PF2; CCGT060202-PM2; CCGT060204-PF2; CCGT060204-PM2; CCGT060208-PM2; CCGT21.50-PF2; CCGT21.50-PM2; CCGT21.50.5-PF2; CCGT21.50.5-PM2; CCGT21.51-PF2; CCGT21.51-PM2; CCGT21.51PM2; CCGT21.52PM2; CCGT060202-1L; CCGT06
Drive typeTorx
Hardware compatibilityInsert
Head typeCountersunk
Indexable tool typeBoring; Counterbore; Drilling; Face Mill Cutter
Key driver compatibilityFS230
Overall length0.2362
Point typeFlat
Screw typeCap Screws
Thread size inM2.5
Toolholder style compatibilityB3213.C; B3220; B3221; B3230; B4030
Torx sizeT8
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
