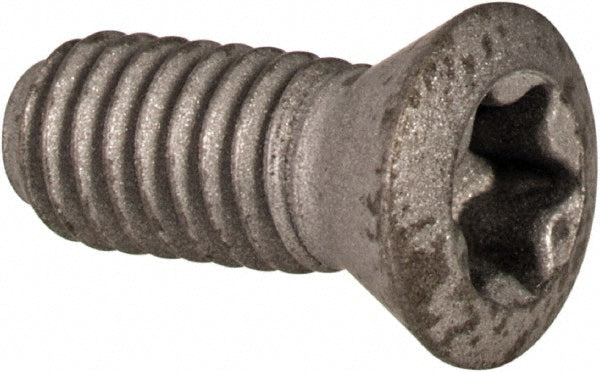

Fasteners for Indexables - Walter 5008516

Walter

Fasteners for Indexables - Walter 5008516

MFR# 5008516Series Capto Stardrill; Walter Boring

$6.37
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Thread sizeM3.5

Description

The Walter 5008516 fasteners for indexables. Series Capto Stardrill; Walter Boring.

Specifications

Complete insert compatibilityCCGT09T301-PF2; CCGT09T301-PM2; CCGT09T302-PF2; CCGT09T302-PM2; CCGT09T304-PF2; CCGT09T304-PM2; CCGT09T308-PF2; CCGT09T308-PM2; CCGT32.50-PF2; CCGT32.50-PM2; CCGT32.50.5-PF2; CCGT32.50.5-PM2; CCGT32.51-PF2; CCGT32.51-PM2; CCGT32.51PM2; CCGT09T302-1L; CCGT
Drive typeTorx
Hardware compatibilityInsert
Head typeCountersunk
Indexable tool typeBoring; Counterbore; Drilling; Face Mill Cutter
Key driver compatibilityFS229
Overall length0.3543
Point typeFlat
Screw typeCap Screws
Thread size inM3.5
Toolholder style compatibilityB3213.C; B3220; B3221; SCFC; SCLC
Torx sizeT15
