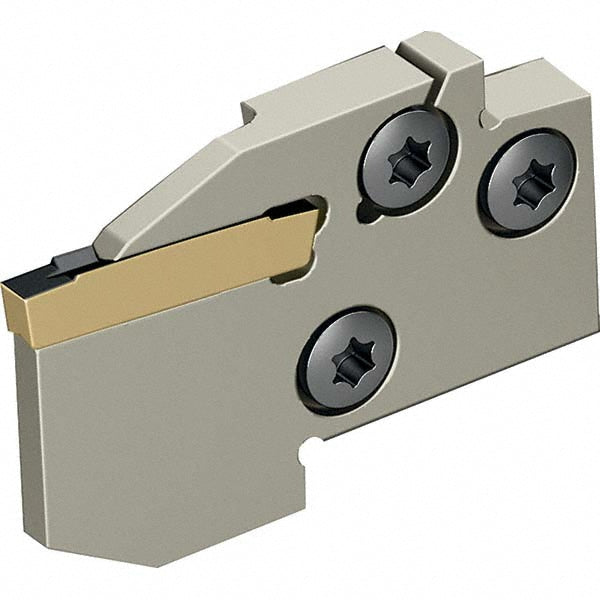

Indexable Cut-Off - Walter 5009571

Walter

Indexable Cut-Off - Walter 5009571

MFR# 5009571

$143.00List $167.40 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Walter 5009571 indexable cut-off.

Specifications

Blade styleMSS-E
Compatible insert styleGXE; GXF
Complete insert compatibilityGX16-1E200N02-CE4; GX16-1E200N02-CF5; GX16-1E200N02-CF6; GX16-1E200N02-GD3; GX16-1E200N02-GD6; GX16-1E200N02-UD6; GX16-1E200N02-UF4; GX16-1E200N020-CF6; GX16-1E200N020-GD3; GX16-1E200N020-UA4; GX16-1E200N020-UF4; GX16-1E200N10-RD4; GX16-1E200R/L6-CE4
Complete tool block toolholder style compatibilityNCAE 25-1616 R/L-GX 16-1
Cutting directionRight Hand
Cutting height1.0000
Cutting tool applicationGrooving
End typeSingle
HandRight Hand
Insert corner radius0.0470
Insert holding methodScrew
Insert styleGX16-1..
Insert width0.0790
Maximum depth of cut0.4720
Maximum insert width0.0980
Maximum workpiece diameter3.1100
Minimum insert width0.0790
StandardsISO
Tool block styleNCAE 25-1616 R/L-GX 16-1
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
