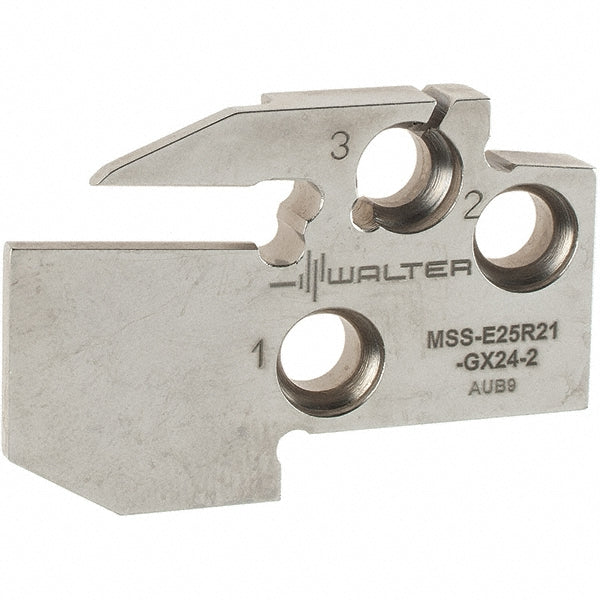

Indexable Cut-Off - Walter 5009597

Walter

Indexable Cut-Off - Walter 5009597

MFR# 5009597

$143.00List $167.40 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Walter 5009597 indexable cut-off.

Specifications

Blade styleMSS-E
Compatible insert styleGXE; GXF
Complete insert compatibilityGX24-2E300N02-CE4; GX24-2E300N02-CF5; GX24-2E300N02-CF6; GX24-2E300N020-CE4; GX24-2E300N03-GD3; GX24-2E300N03-GD6; GX24-2E300N03-UD6; GX24-2E300N03-UF4; GX24-2E300N030-GD3; GX24-2E300N030-UA4; GX24-2E300N030-UF4; GX24-2E300N15-RD4; GX24-2E300N150-RD4
Complete tool block toolholder style compatibilityNCBE 25-1616 R/L-GX 24-2-21
Cutting directionRight Hand
Cutting height1.0000
Cutting tool applicationGrooving
End typeSingle
HandRight Hand
Insert corner radius0.0630
Insert holding methodScrew
Insert styleGX24-2..
Insert width0.1180
Maximum depth of cut0.8270
Maximum workpiece diameter3.1100
Minimum insert width0.1180
StandardsISO
Tool block styleNCBE 25-1616 R/L-GX 24-2-21
