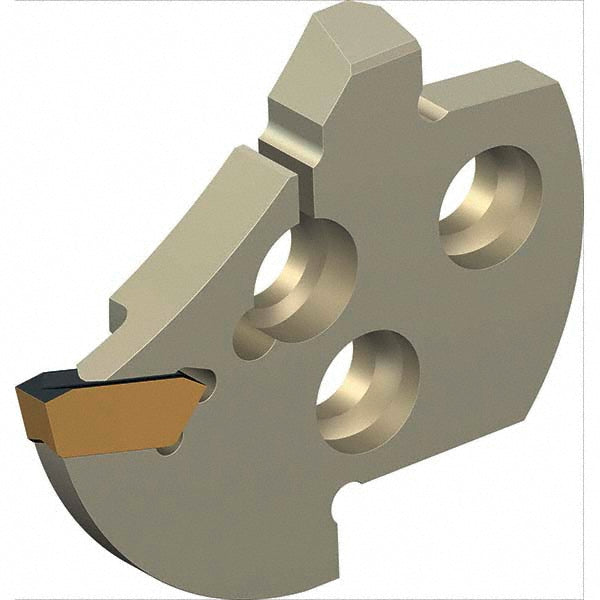

Indexable Grooving - Walter 5009789

Walter

Indexable Grooving - Walter 5009789

MFR# 5009789

$169.76List $198.72 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Walter 5009789 indexable grooving.

Specifications

Blade styleMSS-I
Cartridge sizeI40
Compatible cartridge sizeI40
Compatible insert styleGX24-3..
Complete insert compatibilityGX24-3E400N02-CF5; GX24-3E400N03-CE4; GX24-3E400N030-CE4; GX24-3E400N04-GD3; GX24-3E400N04-GD6; GX24-3E400N04-UD6; GX24-3E400N04-UF4; GX24-3E400N040-GD3; GX24-3E400N040-UA4; GX24-3E400N040-UF4; GX24-3E400N08-UF4; GX24-3E400N080-UF4; GX24-3E400N200-RD4
Cutting directionNeutral
Cutting tool applicationGrooving
Maximum depth of cut0.7480
Maximum groove width0.1970
Minimum groove width0.1570
StandardsISO
