Walter

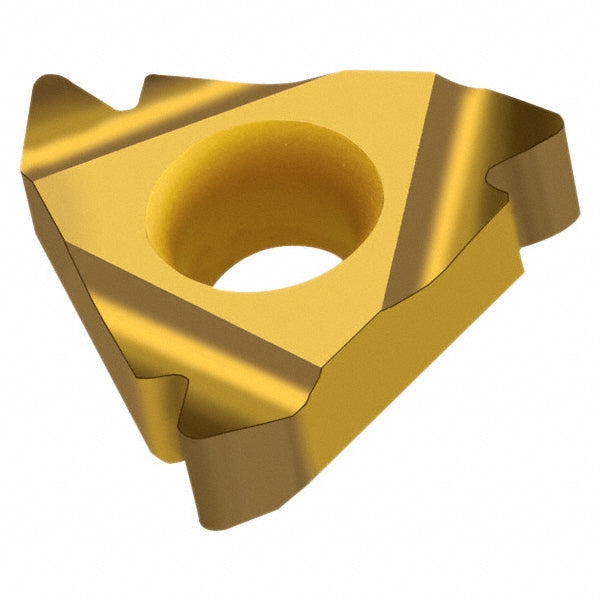

3/8" IC Solid Carbide Insert, Grade WXP20, TiN - Walter 5013220
MFR# 5013220
$30.75List $39.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
GradeWXP20
MaterialSolid Carbide
CoatingTiN
Description
The Walter 5013220 is a solid carbide indexable insert, grade WXP20, TiN coated. Suited for cast iron, steel.
Specifications
Coating finishTiN
Coating processPVD
Cutting edge to theoretical edge length0.0430
Face of insert to tip centerline0.0550
Included angle60
Inscribed circle in3/8
Insert handRight Hand
Insert materialSolid Carbide
Insert size code16
Insert styleNTS-ER16
Manufacturer gradeWXP20
Primary workpiece materialCast Iron; Steel
StandardsANSI; ISO
Threads per inch12
Thread standardUN
Thread typeExternal
