Walter

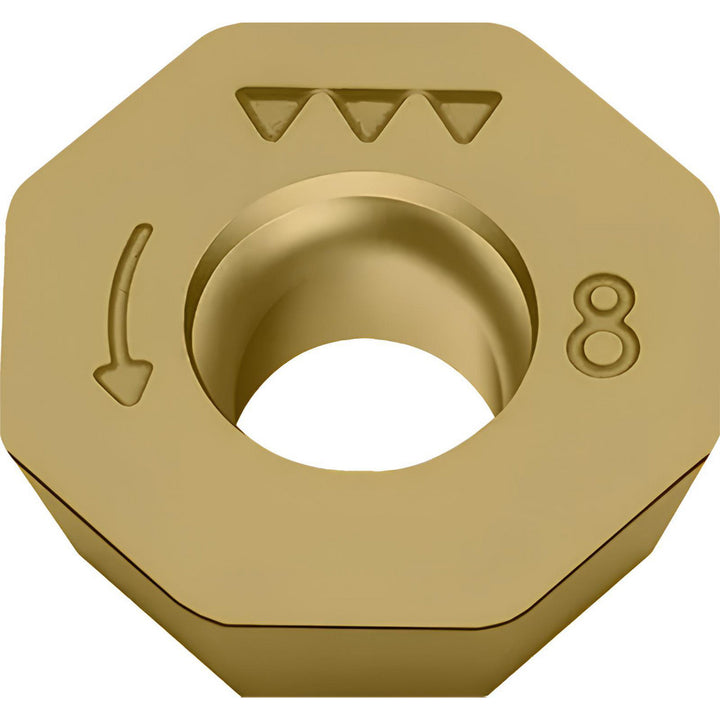

ODHX0605ZZN-A88 WXM15 Solid Carbide Insert, Grade WXM15, TiAlN - Walter 5014063
MFR# 5014063ISO/ANSI# ODHX0605ZZN-A88 WXM15Cat# ODHX0605ZZN-A88Series ODHX
$38.47List $48.48
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeOctagon
GradeWXM15
MaterialSolid Carbide
CoatingTiAlN
Description
The Walter 5014063 is a ODHX0605ZZN-A88 WXM15 solid carbide indexable insert, grade WXM15, TiAlN coated. Suited for steel.
Specifications
Ansi codeODHX0605ZZN-A88 WXM15
Chip breakerA88
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityF2010
Cutting edge styleSharp
Included angle degree135
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code0605
Insert styleODHX
Iso codeODHX0605ZZN-A88 WXM15
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberODHX0605ZZN-A88
Manufacturer gradeWXM15
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeP15; M15; K15
Maximum depth of cut0.2360
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakePositive
Rake angle0
Relief angle15.00
Secondary workpiece materialStainless Steel; Cast Iron
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
