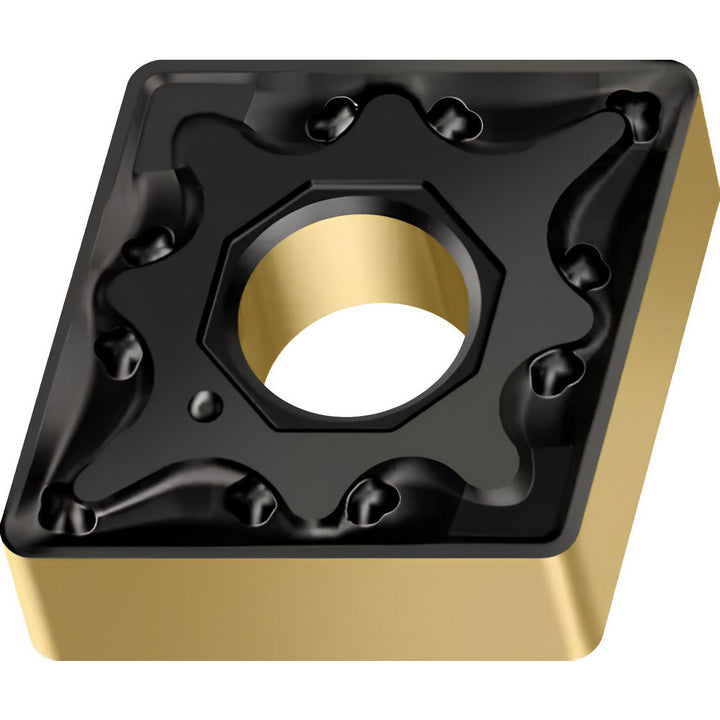

CNMG120404-NM4 WAM30 Carbide Insert, Grade WAM30 - Walter 5016693
MFR# 5016693ISO/ANSI# CNMG120404Series CNMG-NM4
$18.85List $24.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeWAM30
MaterialCarbide
Description
The Walter 5016693 is a CNMG120404-NM4 WAM30 carbide indexable insert, grade WAM30.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerNM4
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberCNMG431-NM4 WAM30
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404-NM4 WAM30
Iso insert codeCNMG120404
Iso size code120404
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number5016693
Manufacturer gradeWAM30
Maximum depth of cut0.0790
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
RakeNegative
Rake angle20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.5080
Wiper edgeNo
