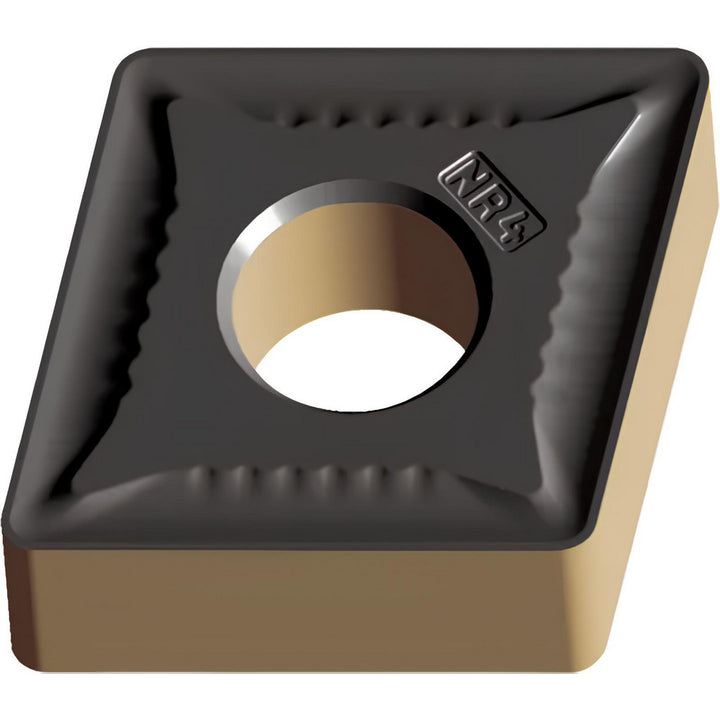

CNMG120408-NR4 WAM30 Carbide Insert, Grade WAM30 - Walter 5016873

Walter

CNMG120408-NR4 WAM30 Carbide Insert, Grade WAM30 - Walter 5016873

MFR# 5016873ISO/ANSI# CNMG120408Series CNMG-NR4

$18.85List $24.17 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeWAM30
MaterialCarbide

Description

The Walter 5016873 is a CNMG120408-NR4 WAM30 carbide indexable insert, grade WAM30.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerNR4
Clearance codeN
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberCNMG432-NR4 WAM30
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-NR4 WAM30
Iso insert codeCNMG120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number5016873
Manufacturer gradeWAM30
Maximum depth of cut0.1970
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
RakeNegative
Rake angle20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.5080
Wiper edgeNo
