Walter

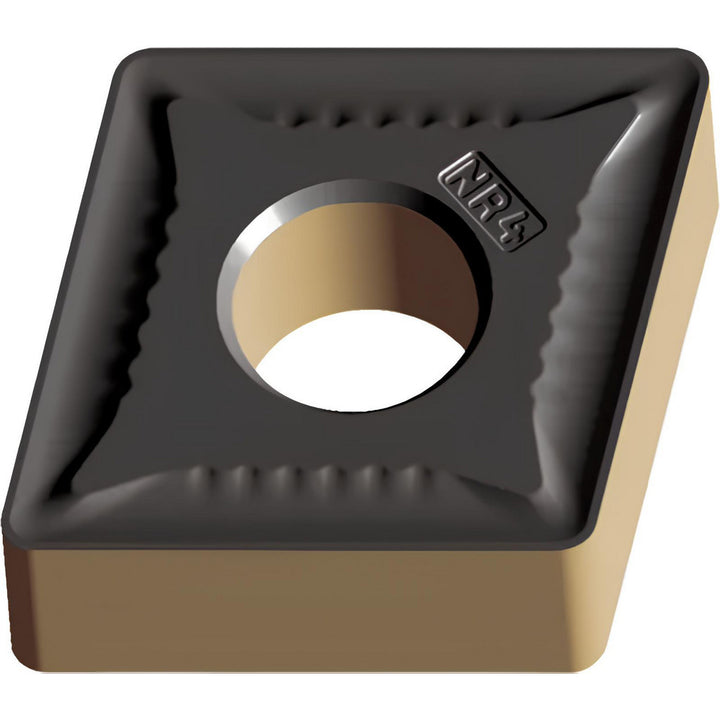

CNMG160612-NR4 WAM30 Carbide Insert, Grade WAM30 - Walter 5016882
MFR# 5016882ISO/ANSI# CNMG160612Series CNMG-NR4
$30.05List $38.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeWAM30
MaterialCarbide
Description
The Walter 5016882 is a CNMG160612-NR4 WAM30 carbide indexable insert, grade WAM30.
Specifications
Ansi insert codeCNMG543
Ansi size code543
Chip breakerNR4
Clearance codeN
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2500
Included angle80
Industry standard numberCNMG543-NR4 WAM30
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612-NR4 WAM30
Iso insert codeCNMG160612
Iso size code160612
Lead angle80
Length range0.6000 - 0.6500
Manufacturers catalog number5016882
Manufacturer gradeWAM30
Maximum depth of cut0.0280
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
RakeNegative
Rake angle20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6346
Wiper edgeNo
