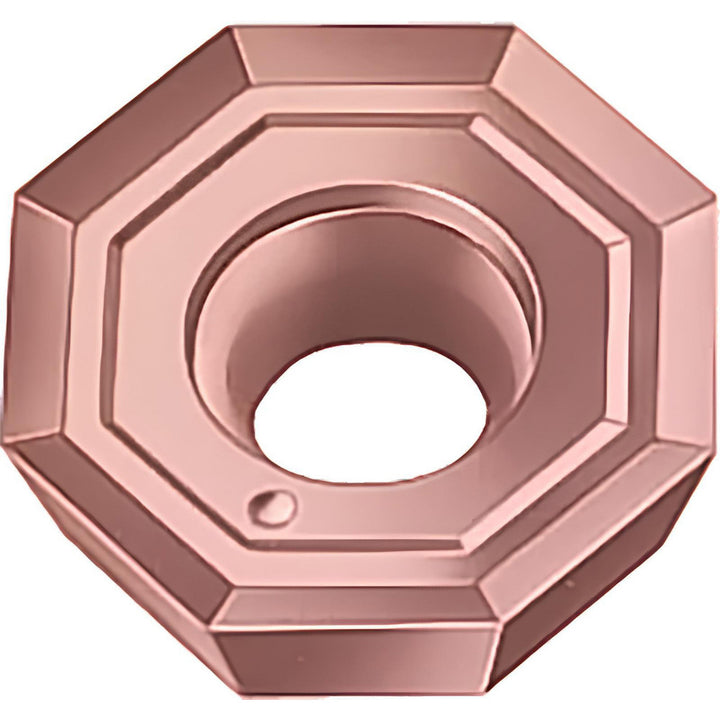

ODHT0605ZZN-G88 WXN15 Solid Carbide Insert, Grade WXN15, TiCN - Walter 5021889

Walter

ODHT0605ZZN-G88 WXN15 Solid Carbide Insert, Grade WXN15, TiCN - Walter 5021889

MFR# 5021889ISO/ANSI# ODHT0605ZZN-G88 WXN15Cat# ODHT0605ZZN-G88Series ODHT

$34.52List $44.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeOctagon
GradeWXN15
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5021889 is a ODHT0605ZZN-G88 WXN15 solid carbide indexable insert, grade WXN15, TiCN coated. Suited for non-ferrous metal.

Specifications

Ansi codeODHT0605ZZN-G88 WXN15
Chip breakerG88
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF2010; M5004
Cutting edge styleSharp
Included angle degree135
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code0605
Insert styleODHT
Iso codeODHT0605ZZN-G88 WXN15
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberODHT0605ZZN-G88
Manufacturer gradeWXN15
Material applicationNon-Ferrous Metal
Material gradeN15
Maximum depth of cut0.2590
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width in5/8
