Walter

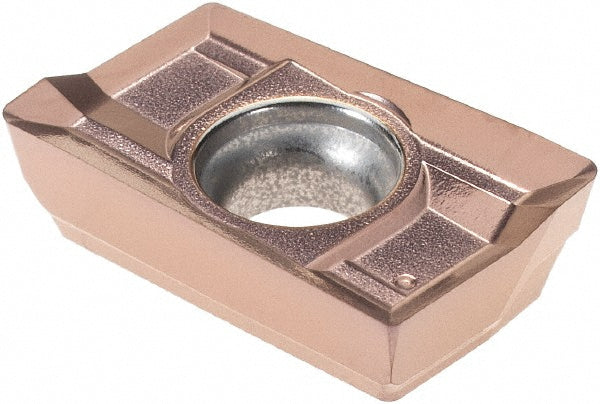

APHT15T3PDR-K88 WXN15 Solid Carbide Insert, Grade WXN15, TiCN - Walter 5021967
MFR# 5021967ISO/ANSI# APHT15T3PDR-K88 WXN15Cat# APHT15T3PDR-K88Series APHT
$32.08List $41.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeWXN15
MaterialSolid Carbide
CoatingTiCN
Description
The Walter 5021967 is a APHT15T3PDR-K88 WXN15 solid carbide indexable insert, grade WXN15, TiCN coated. Suited for non-ferrous metal.
Specifications
Ansi codeAPHT15T3PDR-K88 WXN15
Chip breakerK88
Coating finishTiCN
Coating processPVD
Cutting edge effective length (mm)15.00
Cutting edge styleSharp
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code15T3
Insert styleAPHT
Iso codeAPHT15T3PDR-K88 WXN15
Manufacturers catalog numberAPHT15T3PDR-K88
Manufacturer gradeWXN15
Material applicationNon-Ferrous Metal
Material gradeN15
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.5906
