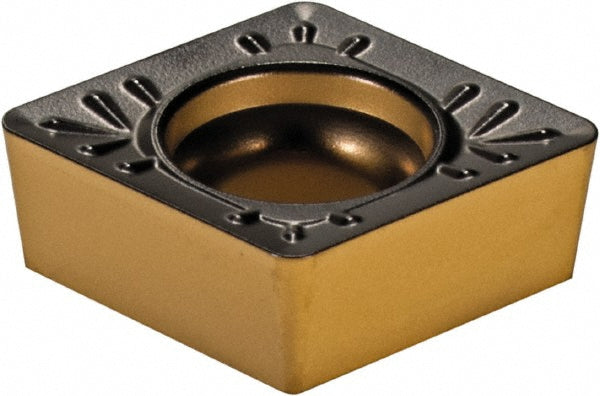

CCMT09T308-PM5 WAK20 Carbide Insert, Grade WAK20, TiCN - Walter 5022073

Walter

CCMT09T308-PM5 WAK20 Carbide Insert, Grade WAK20, TiCN - Walter 5022073

MFR# 5022073ISO/ANSI# CCMT09T308Series CCMT-PM5

$14.89List $19.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeWAK20
MaterialCarbide
CoatingTiCN

Description

The Walter 5022073 is a CCMT09T308-PM5 WAK20 carbide indexable insert, grade WAK20, TiCN coated. Suited for cast iron.

Specifications

Ansi insert codeCCMT32.52
Ansi size code32.52
Chip breakerPM5
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberCCMT3(2.5)2-PM5 WAK20
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3810
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T308-PM5 WAK20
Iso insert codeCCMT09T308
Iso size code09T308
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number5022073
Manufacturer gradeWAK20
Material gradeK20; P10
Maximum depth of cut0.1570
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.3810
Wiper edgeNo
