Walter

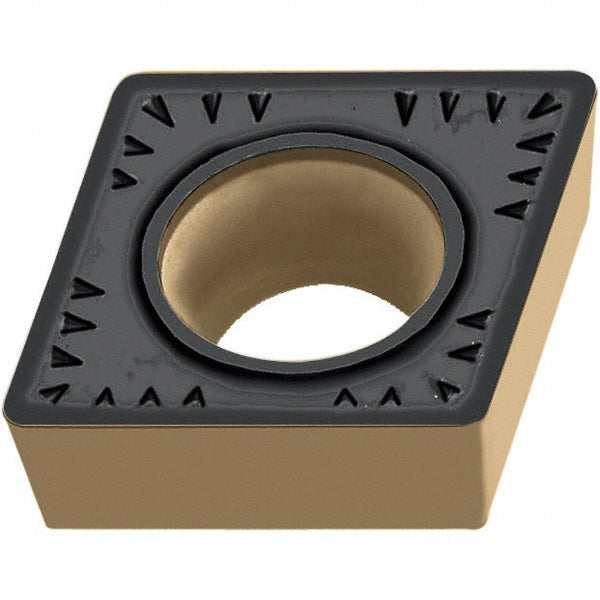

CCMT120408-PM5 WAK20 Carbide Insert, Grade WAK20, TiCN - Walter 5022077
MFR# 5022077ISO/ANSI# CCMT120408Series CCMT-PM5
$21.31List $27.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeWAK20
MaterialCarbide
CoatingTiCN
Description
The Walter 5022077 is a CCMT120408-PM5 WAK20 carbide indexable insert, grade WAK20, TiCN coated. Suited for cast iron.
Specifications
Ansi insert codeCCMT432
Ansi size code432
Chip breakerPM5
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2170
Included angle80
Industry standard numberCCMT432-PM5 WAK20
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120408-PM5 WAK20
Iso insert codeCCMT120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number5022077
Manufacturer gradeWAK20
Material gradeK20; P10
Maximum depth of cut0.1970
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle12
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.5080
Wiper edgeNo
