Walter

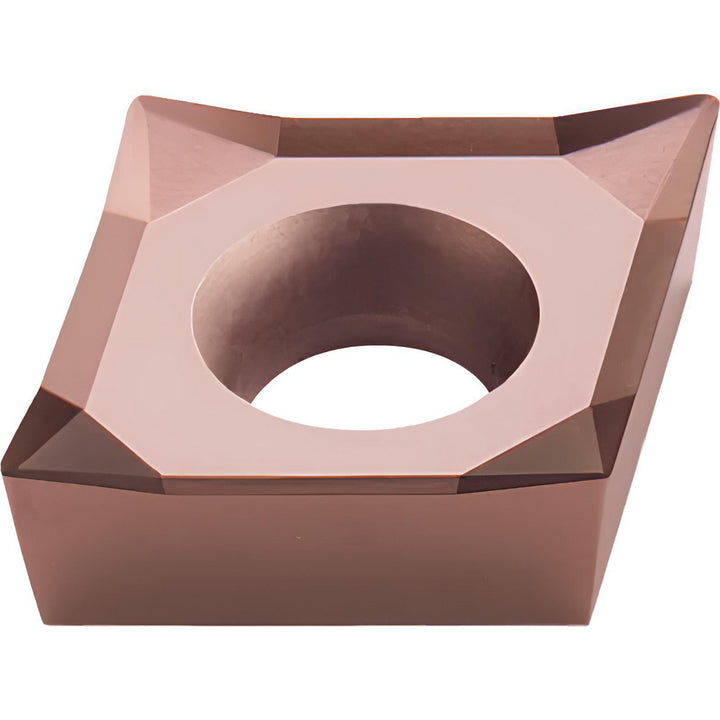

CCGT060202-PM2 WXN10 Carbide Insert, Grade WXN10, TiCN Plus - Walter 5025569
MFR# 5025569ISO/ANSI# CCGT060202Series CCGT-PM2
$21.22List $27.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeWXN10
MaterialCarbide
CoatingTiCN Plus
Description
The Walter 5025569 is a CCGT060202-PM2 WXN10 carbide indexable insert, grade WXN10, TiCN Plus coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeCCGT21.50.5
Ansi size code21.50.5
Chip breakerPM2
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN Plus
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberCCGT2(1.5)0.5-PM2 WXN10
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.50.5
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060202-PM2 WXN10
Iso insert codeCCGT060202
Iso size code060202
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number5025569
Manufacturer gradeWXN10
Material gradeM01; N10; P01
Maximum depth of cut0.0780
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.2540
Wiper edgeNo
