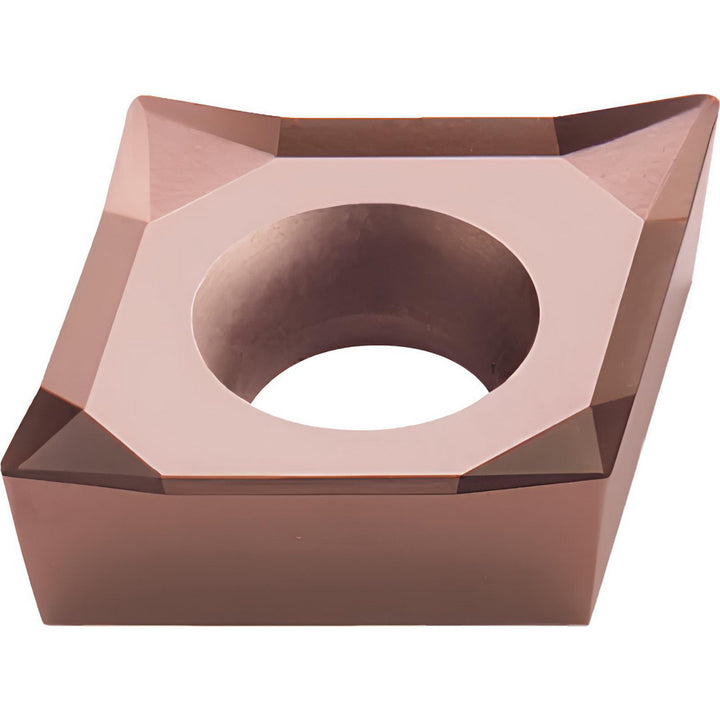

CCGT120408-PM2 WXN10 Carbide Insert, Grade WXN10, TiCN Plus - Walter 5025576

Walter

CCGT120408-PM2 WXN10 Carbide Insert, Grade WXN10, TiCN Plus - Walter 5025576

MFR# 5025576ISO/ANSI# CCGT120408Series CCGT-PM2

$31.97List $40.29 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeWXN10
MaterialCarbide
CoatingTiCN Plus

Description

The Walter 5025576 is a CCGT120408-PM2 WXN10 carbide indexable insert, grade WXN10, TiCN Plus coated. Suited for non-ferrous metal.

Specifications

Ansi insert codeCCGT432
Ansi size code432
Chip breakerPM2
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN Plus
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2170
Included angle80
Industry standard numberCCGT432-PM2 WXN10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCCGT
Insert thickness in3/16
Iso codeCCGT120408-PM2 WXN10
Iso insert codeCCGT120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number5025576
Manufacturer gradeWXN10
Material gradeM01; N10; P01
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.5080
Wiper edgeNo
