Walter

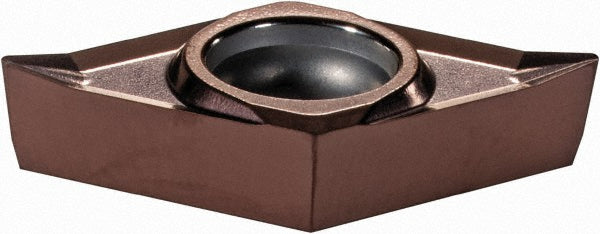

DCGT11T304-PM2 WXN10 Carbide Insert, Grade WXN10, TiCN Plus - Walter 5025583
MFR# 5025583ISO/ANSI# DCGT11T304Series DCGT-PM2
$24.43List $31.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeWXN10
MaterialCarbide
CoatingTiCN Plus
Description
The Walter 5025583 is a DCGT11T304-PM2 WXN10 carbide indexable insert, grade WXN10, TiCN Plus coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeDCGT32.51
Ansi size code32.51
Chip breakerPM2
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN Plus
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1730
Included angle55
Industry standard numberDCGT3(2.5)1-PM2 WXN10
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4580
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304-PM2 WXN10
Iso insert codeDCGT11T304
Iso size code11T304
Lead angle55
Length range0.4000 - 0.5000
Manufacturers catalog number5025583
Manufacturer gradeWXN10
Material gradeM01; N10; P01
Maximum depth of cut0.1180
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
