Walter

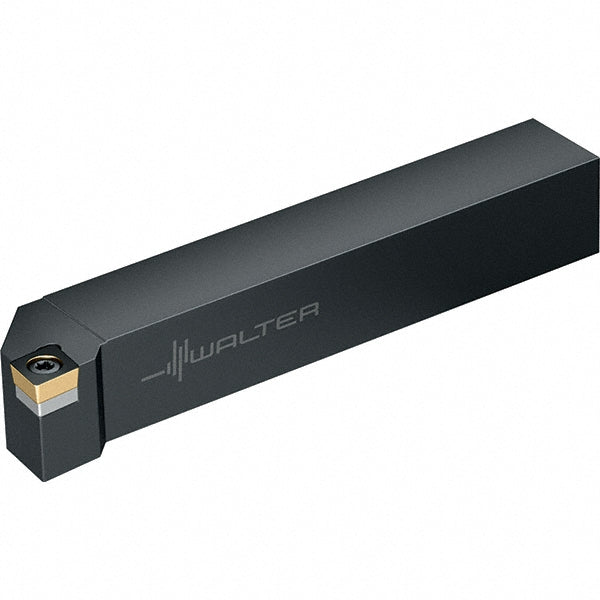

Indexable Turning & Profiling - Walter 5028449
MFR# 5028449Series Walter Turn
$146.09List $171.01
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5028449 indexable turning & profiling. Series Walter Turn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeCC1204; CC43
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length0.8300
Insert compatibilityCC..1204..; CC..43..
Insert holding methodScrew
Insert inscribed circle in1/2
Insert width0.5080
Lead angle95.0
Maximum overhang in0.8940
Multi use toolNo
Overall length6.0000
RakeNeutral
Rake angle0
Shank height1.0000
Shank width in1
StandardsANSI; ISO
Toolholder styleSCLC
