Walter

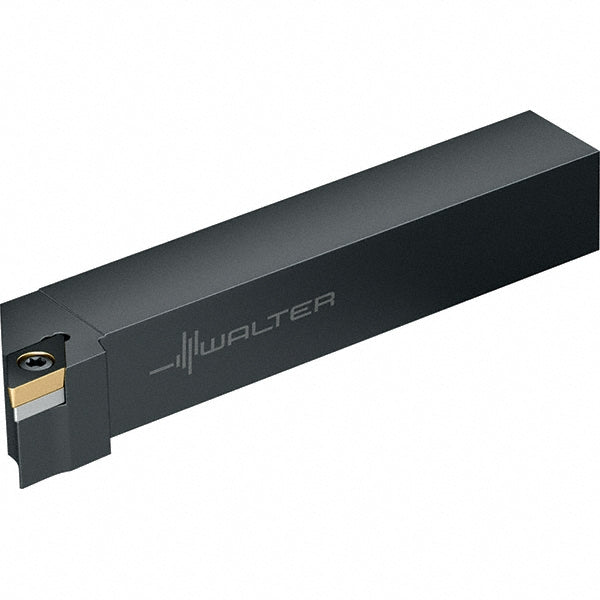

Indexable Turning & Profiling - Walter 5028456
MFR# 5028456Series Walter Turn
$140.10List $164.00
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5028456 indexable turning & profiling. Series Walter Turn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeDC11T3; DC325
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length1.1000
Insert compatibilityDC.. 11T3..; DC.. 32.5..
Insert holding methodScrew
Insert inscribed circle in3/8
Insert width0.4580
Lead angle93.0
Maximum overhang in0.9490
Multi use toolNo
Overall length6.0000
RakeNeutral
Rake angle0
Shank height1.0000
Shank width in1
StandardsANSI; ISO
Toolholder styleSDJC
