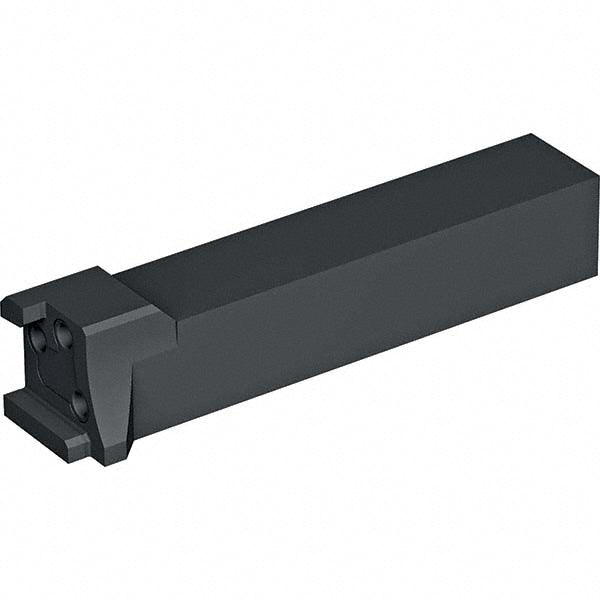

Indexable Grooving - Walter 5028828

Walter

Indexable Grooving - Walter 5028828

MFR# 5028828Series MSS-E

$219.72List $252.72 Save 13%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Walter 5028828 indexable grooving. Suited for universal. Series MSS-E.

Specifications

Back of bar to cutting edge2.4600
Complete insert compatibilityFX2.2-E220N010-CE4; FX2.2-E220N010-CK8; FX2.2-E220N015-CE6; FX2.2-E220R/L4-CE4; FX2.2-E220R/L5-CE6; FX3.1-E310N015-CE4; FX3.1-E310N015-CK8; FX3.1-E310N020-CE6; FX3.1-E310N040-CD3; FX3.1-E310N040-CE6; FX3.1-E310R/L5-CE6; FX3.1-E310R/L6-CE4; FX4.1-E410N015-
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertYes
Hand of holderLeft Hand
Insert compatibilityFX2.2..; FX3.1..; FX4.1..; FX5.1..; FX6.5..; GX16-1..; GX16-2..; GX16-3..; GX16-4..; GX24-2..; GX24-3..; GX24-4..; GX24-5..
Insert corner radius0.1570
Insert holding methodScrew
Internal or externalExternal
Maximum depth of cut1.3780
Maximum groove width0.3150
Minimum groove width0.0240
Minimum hole diameter1.9690
Overall length5.5000
Primary workpiece materialUniversal
Shank height1.0000
Shank width diameter in1
Toolholder styleMSS-E
