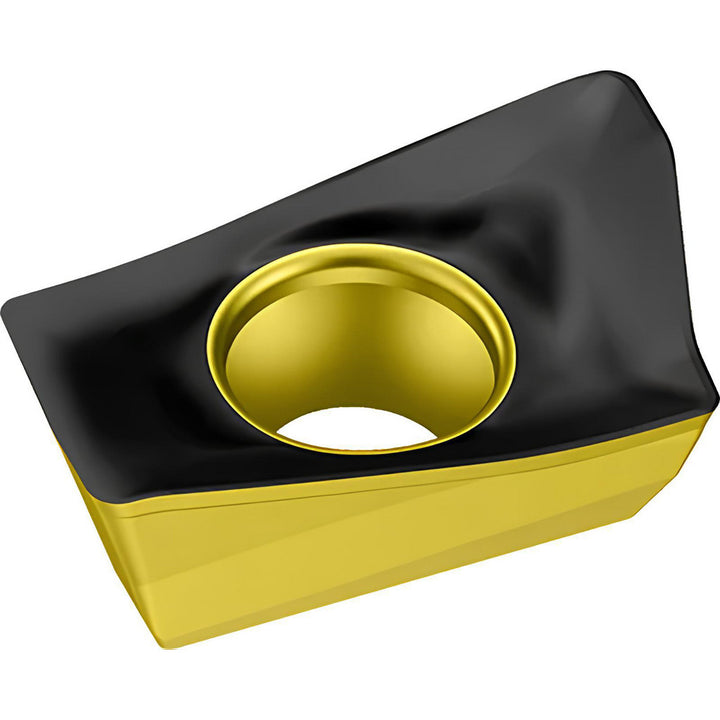

ADMT160608R-D56 WAK15 Solid Carbide Insert, Grade WAK15, TiCN - Walter 5043184

Walter

ADMT160608R-D56 WAK15 Solid Carbide Insert, Grade WAK15, TiCN - Walter 5043184

MFR# 5043184ISO/ANSI# ADMT160608R-D56 WAK15Cat# ADMT160608R-D56Series ADMT

$28.39List $36.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWAK15
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5043184 is a ADMT160608R-D56 WAK15 solid carbide indexable insert, grade WAK15, TiCN coated. Suited for cast iron.

Specifications

Ansi codeADMT160608R-D56 WAK15
Chip breakerD56
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityF2010; F4042; F4238
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.4250
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160608
Insert styleADMT
Iso codeADMT160608R-D56 WAK15
Length0.6890
Length range0.6500 to 0.7000
Manufacturers catalog numberADMT160608R-D56
Manufacturer gradeWAK15
Material applicationCast Iron
Material gradeK15
Maximum depth of cut0.6890
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle10
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2420
Thickness range0.2350 to 0.2500
Width0.4250
