Walter

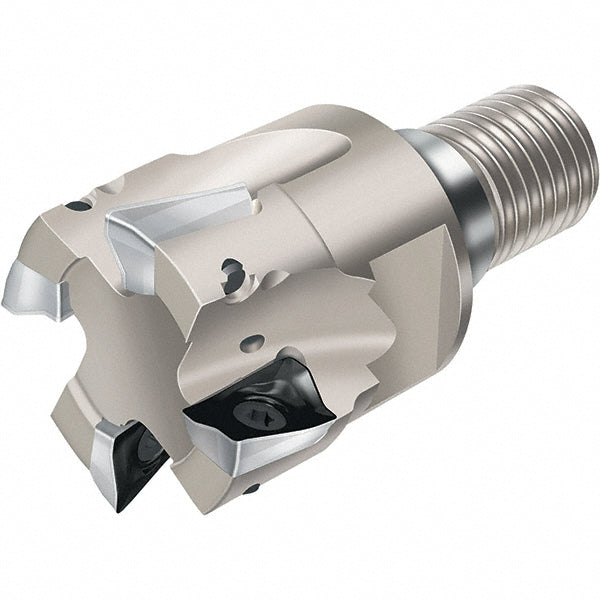

Indexable End Mills - Walter 5045269
MFR# 5045269
$562.86List $709.56
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Walter 5045269 indexable end mills. Suited for universal.
Specifications
Coolant throughYes
Cutter styleF4042
Head length1.5748
Insert compatibilityADGT 1606PER-D51; ADGT 1606PER-D56; ADGT 1606PER-F56; ADHT 160616R-G88; ADHT 160625R-G88; ADHT 160630R-G88; ADHT 160640R-G88; ADHT 1606PER-G88; ADKT1606PER-F56; ADMT 160608R-D56; ADMT 160608R-F56; ADMT 160608R-G56; ADMT 160612R-F56; ADMT 160616R-F56; ADMT
Insert holding methodScrew
Iso numberF4042.T36.040.Z04.15
Lead angle90
Maximum depth of cut0.5906
Maximum rpm10000
Modular connection sizeT36
Number of cutter inserts4
Number of flutes4
Primary workpiece materialUniversal
Secondary workpiece materialGlass; Graphite; Hard Material
Shank length1.3780
Shank typeModular Connection
