Walter

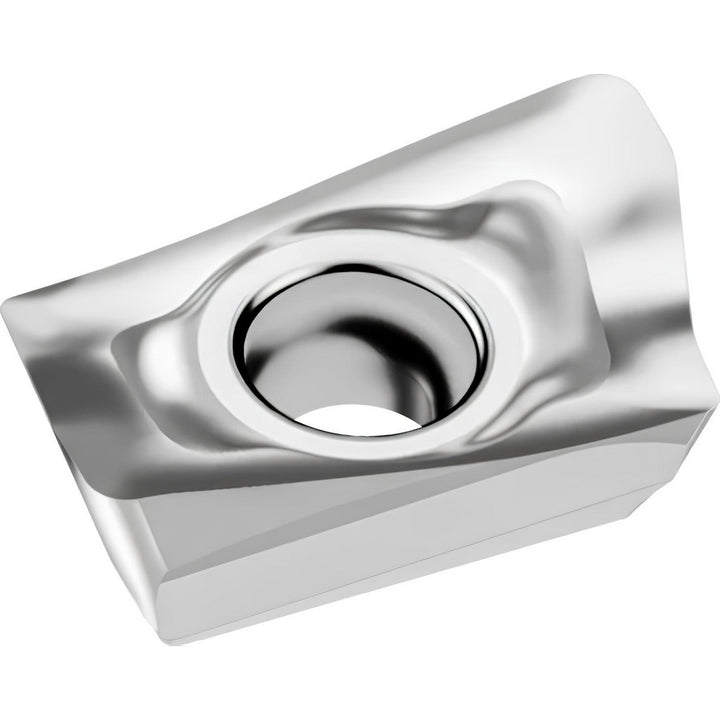

ADHT1606PER-G88 WK10 Solid Carbide Insert, Grade WK10 - Walter 5055690
MFR# 5055690ISO/ANSI# ADHT1606PER-G88 WK10Cat# ADHT1606PER-G88Series ADHT
$29.21List $37.47
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeWK10
MaterialSolid Carbide
Description
The Walter 5055690 is a ADHT1606PER-G88 WK10 solid carbide indexable insert, grade WK10. Suited for non-ferrous metal.
Specifications
Ansi codeADHT1606PER-G88 WK10
Chip breakerG88
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityF2010; F4042; F4238
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.4250
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1606
Insert styleADHT
Iso codeADHT1606PER-G88 WK10
Length0.6890
Length range0.6500 to 0.7000
Manufacturers catalog numberADHT1606PER-G88
Manufacturer gradeWK10
Material applicationNon-Ferrous Metal
Material gradeN10
Maximum depth of cut0.6890
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2420
Thickness range0.2350 to 0.2500
Width0.4250
