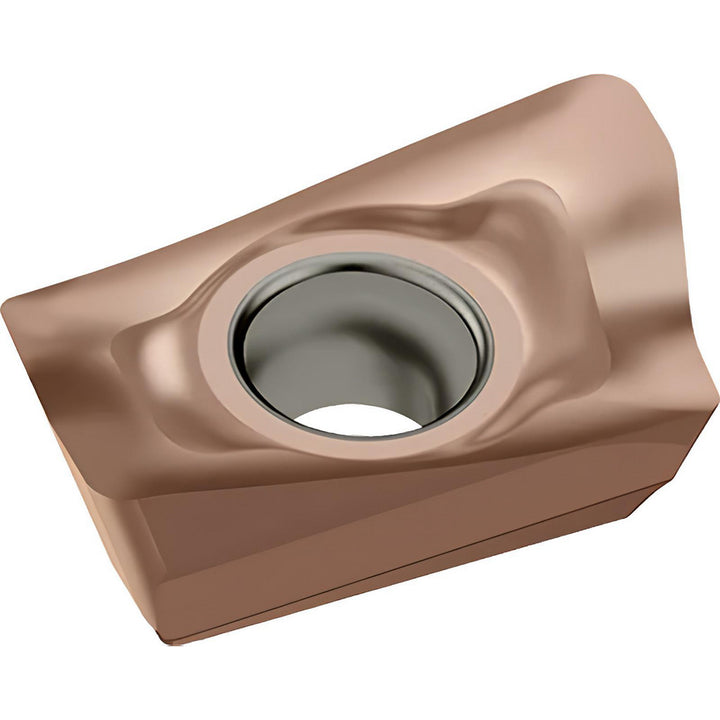

ADHT1204PER-G88 WXN15 Solid Carbide Insert, Grade WXN15, TiCN - Walter 5055715

Walter

ADHT1204PER-G88 WXN15 Solid Carbide Insert, Grade WXN15, TiCN - Walter 5055715

MFR# 5055715ISO/ANSI# ADHT1204PER-G88 WXN15Cat# ADHT1204PER-G88Series ADHT

$31.15List $39.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWXN15
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5055715 is a ADHT1204PER-G88 WXN15 solid carbide indexable insert, grade WXN15, TiCN coated. Suited for non-ferrous metal.

Specifications

Ansi codeADHT1204PER-G88 WXN15
Chip breakerG88
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF2010; F2252; F4042; F4138
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.3310
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size12
Insert size code1204
Insert styleADHT
Iso codeADHT1204PER-G88 WXN15
Length0.5350
Length range0.5000 to 0.6000
Manufacturers catalog numberADHT1204PER-G88
Manufacturer gradeWXN15
Material applicationNon-Ferrous Metal
Material gradeN15
Maximum depth of cut0.5350
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.3310
