Walter

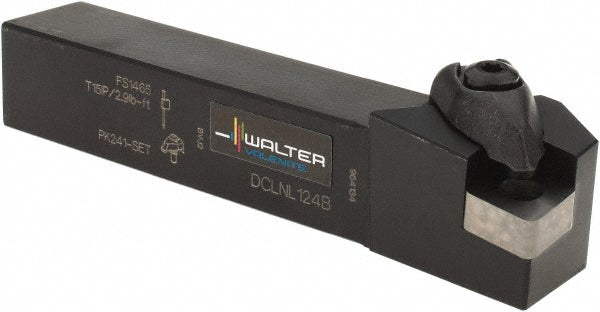

Indexable Turning & Profiling - Walter 5097497
MFR# 5097497Series Walter Turn
$138.39List $162.00
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5097497 indexable turning & profiling. Series Walter Turn.
Specifications
Back of bar to cutting edge1.0000
Compatible insert size codeCN 43; CN1204
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length1.2600
Insert compatibilityCN.. 43..; CN..1204..
Insert holding methodClamp
Insert inscribed circle in1/2
Insert width0.5080
Lead angle95.0
Maximum overhang in1.2600
Multi use toolNo
Overall length4.5000
RakeNegative
Rake angle-6
Shank height0.7500
Shank width0.7500
Toolholder styleDCLN
