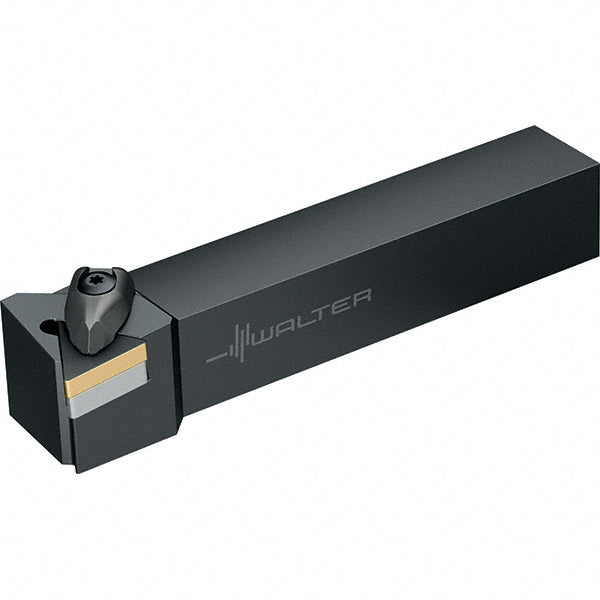

Indexable Turning & Profiling - Walter 5097504
MFR# 5097504Series Walter Turn
$143.92List $168.47
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5097504 indexable turning & profiling. Series Walter Turn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeTN2204; TN43
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length1.2830
Insert compatibilityTN..2204..; TN..43..
Insert holding methodClamp
Insert inscribed circle in1/2
Insert width0.8660
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6
Shank height1.0000
Shank width in1
StandardsANSI; ISO
Toolholder styleDTJN
