Walter

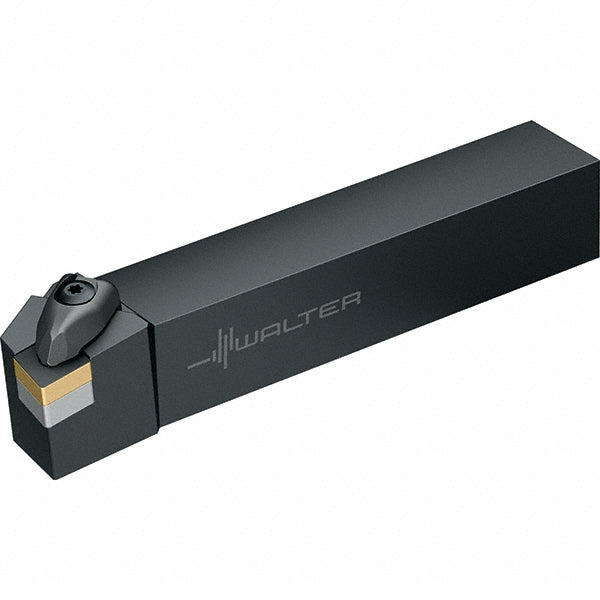

Indexable Turning & Profiling - Walter 5097506
MFR# 5097506Series Walter Turn
$188.20List $220.31
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5097506 indexable turning & profiling. Series Walter Turn.
Specifications
Back of bar to cutting edge1.5000
Compatible insert size codeCN1906; CN64
Coolant throughNo
Cutting directionLeft Hand
Cutting tool applicationTurning
Hand of holderLeft Hand
Head length1.7000
Insert compatibilityCN.. 1906..; CN.. 64..
Insert holding methodClamp
Insert inscribed circle in3/4
Insert width0.7600
Lead angle95.0
Maximum overhang in1.7000
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6
Shank height1.2500
Shank width in1-1/4
Toolholder styleDCLN
