Walter

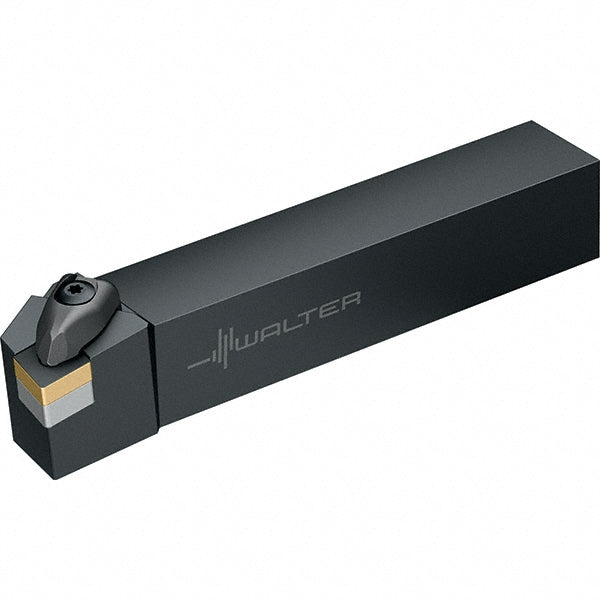

Indexable Turning & Profiling - Walter 5097517
MFR# 5097517Series Walter Turn
$144.85List $169.57
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5097517 indexable turning & profiling. Series Walter Turn.
Specifications
Back of bar to cutting edge1.2500
Compatible insert size codeCN 43; CN1204
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.2600
Insert compatibilityCN.. 43..; CN..1204..
Insert holding methodClamp
Insert inscribed circle in1/2
Insert width0.5080
Lead angle95.0
Maximum overhang in1.2600
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6
Shank height1.0000
Shank width1.0000
Toolholder styleDCLN
