Walter

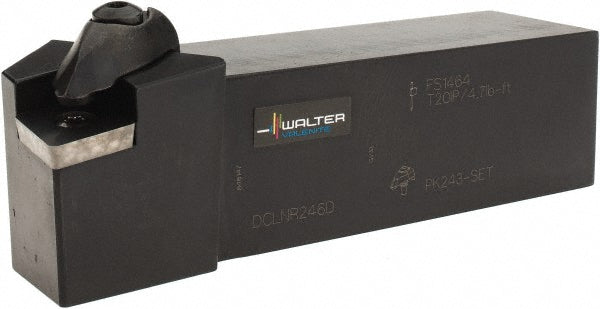

Indexable Turning & Profiling - Walter 5097527
MFR# 5097527Series Walter Turn
$239.20List $280.00
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5097527 indexable turning & profiling. Series Walter Turn.
Specifications
Back of bar to cutting edge2.0000
Compatible insert size codeCN1906; CN64
Coolant throughNo
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length1.7000
Insert compatibilityCN.. 1906..; CN.. 64..
Insert holding methodClamp
Insert inscribed circle in3/4
Insert width0.7600
Lead angle95.0
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6
Shank height1.5000
Shank width1.5000
Toolholder styleDCLN
