Walter

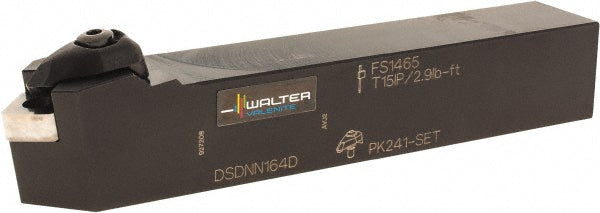

Indexable Turning & Profiling - Walter 5097556
MFR# 5097556Series Walter Turn
$144.85List $169.57
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5097556 indexable turning & profiling. Series Walter Turn.
Specifications
Back of bar to cutting edge0.5120
Compatible insert size codeSN1204; SN43
Coolant throughNo
Cutting directionNeutral
Cutting tool applicationTurning
Hand of holderNeutral
Head length1.4500
Insert compatibilitySN..1204..; SN..43..
Insert holding methodClamp
Insert inscribed circle in1/2
Lead angle45.0
Maximum overhang in1.4500
Multi use toolNo
Overall length6.0000
RakeNegative
Rake angle-6
Shank height1.0000
Shank width1.0000
StandardsANSI; ISO
Toolholder styleDSDN
