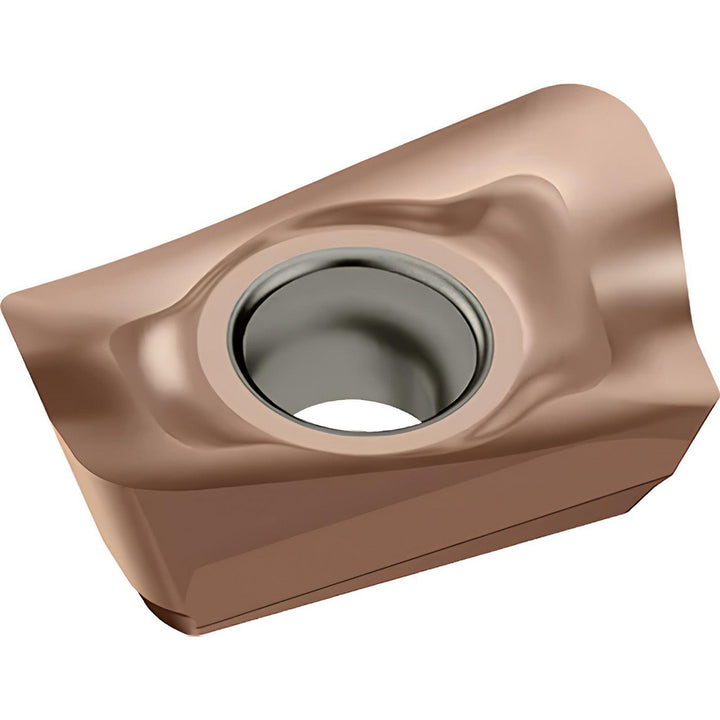

ADHT160616R-G88 WXN15 Solid Carbide Insert, Grade WXN15, TiCN - Walter 5157717

Walter

ADHT160616R-G88 WXN15 Solid Carbide Insert, Grade WXN15, TiCN - Walter 5157717

MFR# 5157717ISO/ANSI# ADHT160616R-G88 WXN15Cat# ADHT160616R-G88Series ADHT

$33.53List $43.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWXN15
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 5157717 is a ADHT160616R-G88 WXN15 solid carbide indexable insert, grade WXN15, TiCN coated. Suited for non-ferrous metal.

Specifications

Ansi codeADHT160616R-G88 WXN15
Chip breakerG88
Coating finishTiCN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityF2010; F4042; F4238
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.4250
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160616
Insert styleADHT
Iso codeADHT160616R-G88 WXN15
Length0.6890
Length range0.6500 to 0.7000
Manufacturers catalog numberADHT160616R-G88
Manufacturer gradeWXN15
Material applicationNon-Ferrous Metal
Material gradeN15
Maximum depth of cut0.6890
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle20
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2420
Thickness range0.2350 to 0.2500
Width0.4250
