Walter

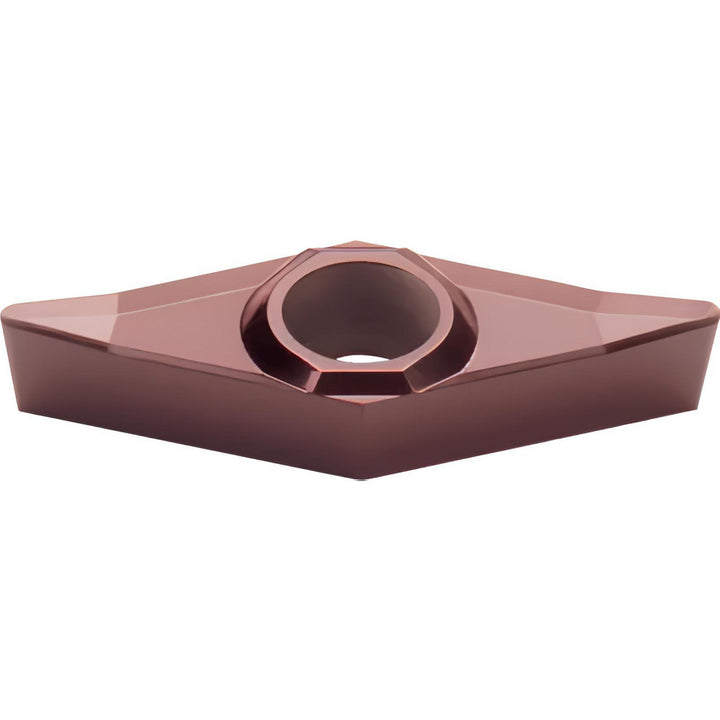

VCGT160404-PM2 WXN10 Carbide Insert, Grade WXN10, TiCN Plus - Walter 5194852
MFR# 5194852ISO/ANSI# VCGT160404Series VCGT-PM2
$32.35List $41.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeWXN10
MaterialCarbide
CoatingTiCN Plus
Description
The Walter 5194852 is a VCGT160404-PM2 WXN10 carbide indexable insert, grade WXN10, TiCN Plus coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeVCGT331
Ansi size code331
Chip breakerPM2
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN Plus
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1730
Included angle35
Industry standard numberVCGT331-PM2 WXN10
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6540
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVCGT
Insert thickness in3/16
Iso codeVCGT160404-PM2 WXN10
Iso insert codeVCGT160404
Iso size code160404
Lead angle35
Length range0.6500 - 0.7000
Manufacturers catalog number5194852
Manufacturer gradeWXN10
Material gradeM01; N10; P01
Maximum depth of cut0.1380
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
