Walter

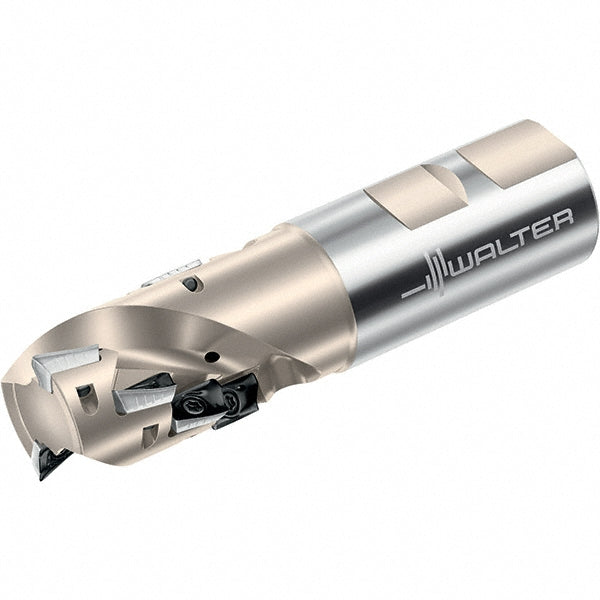

Indexable End Mills - Walter 5197296
MFR# 5197296
$1,136.86List $1,433.15
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Walter 5197296 indexable end mills. Suited for universal.
Specifications
Coolant throughYes
Cutter styleF4238
Cutting diameter1-1/2
Cutting diameter (mm)38.10
Head length3.15
Insert compatibilityADGT 1606PER-D51; ADGT 1606PER-D56; ADGT 1606PER-F56; ADHT 160616R-G88; ADHT 160625R-G88; ADHT 160630R-G88; ADHT 160640R-G88; ADHT 1606PER-G88; ADKT1606PER-F56; ADMT 160608R-D56; ADMT 160608R-F56; ADMT 160608R-G56; ADMT 160612R-F56; ADMT 160616R-F56; ADMT
Insert holding methodScrew
Iso numberF4238.UW31.038.Z03.57
Lead angle90
Maximum depth of cut2.2440
Number of cutter inserts12
Number of flutes3
Primary workpiece materialUniversal
Secondary workpiece materialGlass; Graphite
Shank diameter in1-1/4
Shank typeWeldon Flat
StandardsISO:ANSI
Tool applicationHelical
