Walter

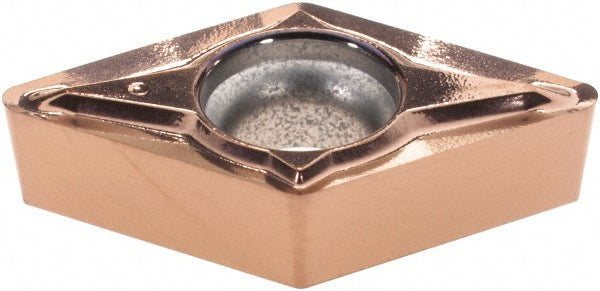

DCGT11T308-PF2 WXN10 Carbide Insert, Grade WXN10, TiCN Plus - Walter 5197929
MFR# 5197929ISO/ANSI# DCGT11T308Series DCGT-PF2
$29.39List $37.04
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeWXN10
MaterialCarbide
CoatingTiCN Plus
Description
The Walter 5197929 is a DCGT11T308-PF2 WXN10 carbide indexable insert, grade WXN10, TiCN Plus coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeDCGT32.52
Ansi size code32.52
Chip breakerPF2
Clearance codeC
Coating finishTiCN Plus
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55
Industry standard numberDCGT3(2.5)2-PF2 WXN10
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4580
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.52
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T308-PF2 WXN10
Iso insert codeDCGT11T308
Iso size code11T308
Lead angle55
Length range0.4000 - 0.5000
Manufacturers catalog number5197929
Manufacturer gradeWXN10
Material gradeM01; N10; P01
Maximum depth of cut0.1180
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
