Walter

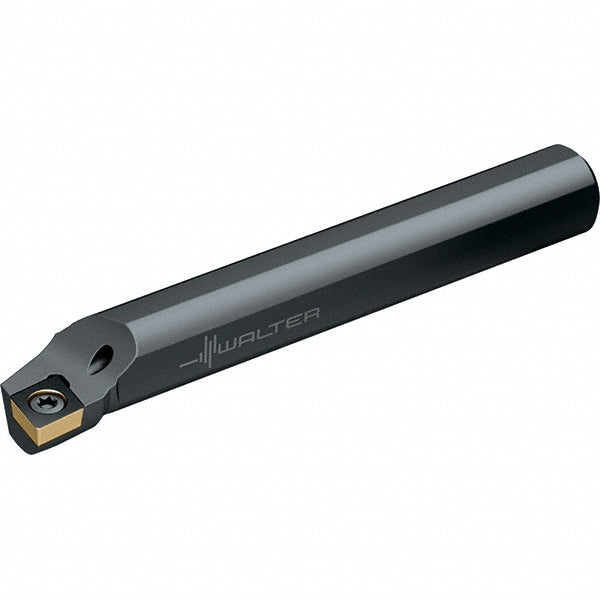

Indexable Boring - Walter 5204711
MFR# 5204711Series Walter Turn
$160.61List $188.00
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5204711 indexable boring. Series Walter Turn.
Specifications
Center to cutting edge0.3120
Compatible insert shapeDiamond
Compatible insert size code0602,21.5
Compatible insert thickness (mm)2.38
Coolant throughYes
Cutting directionRight Hand
Cutting tool applicationBoring
Hand of holderRight Hand
Insert compatibilityCC.. 0602..; CC.. 21.5..
Insert holding methodScrew
Insert inscribed circle in1/4
Insert thickness in3/32
Lead angle95.00
Minimum bore diameter0.5980
Multi use toolNo
Overall length6.0000
RakeNeutral
Shank diameter in1/2
StandardsANSI; ISO
Toolholder styleA-SCLC
Tool materialSteel
