Walter

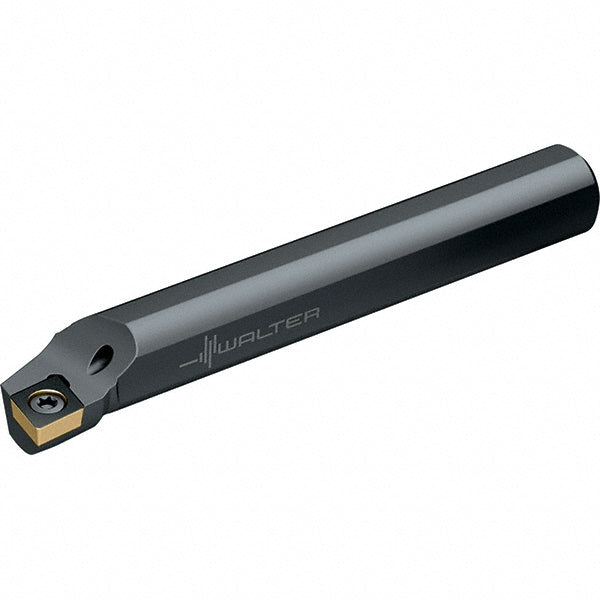

Indexable Boring - Walter 5204714
MFR# 5204714Series Walter Turn
$167.93List $196.57
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5204714 indexable boring. Series Walter Turn.
Specifications
Center to cutting edge0.4060
Compatible insert shapeDiamond
Compatible insert size code09T3; 32.5
Compatible insert thickness (mm)3.97
Coolant throughYes
Cutting tool applicationBoring
Hand of holderLeft Hand
Insert compatibilityCC.. 09T3..; CC.. 32.5..
Insert holding methodScrew
Insert inscribed circle in3/8
Insert thickness in5/32
Lead angle95
Minimum bore diameter0.7700
Multi use toolNo
Overall length8.0000
RakeNeutral
Shank diameter in5/8
StandardsANSI; ISO
Toolholder styleA-SCLC
Tool materialSteel
