Walter

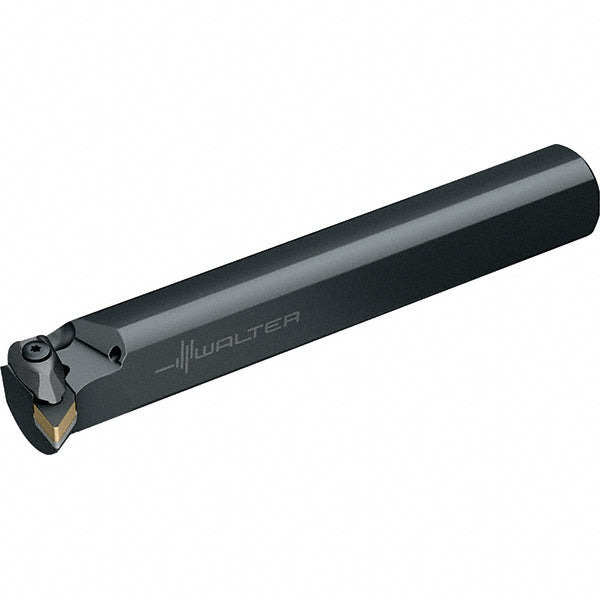

Indexable Boring - Walter 5335126
MFR# 5335126Series Walter Turn
$440.10List $515.17
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5335126 indexable boring. Series Walter Turn.
Specifications
Center to cutting edge1.1250
Compatible insert shapeDiamond
Compatible insert size code1504; 43
Compatible insert thickness (mm)4.76
Coolant throughYes
Cutting tool applicationBoring
Hand of holderRight Hand
Insert compatibilityDN.. 1504..; DN.. 43..
Insert holding methodClamp
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle93
Minimum bore diameter2.0000
Multi use toolNo
Overall length12.0000
RakeNegative
Rake angle-6.00
Shank diameter in1-1/2
StandardsANSI; ISO
Toolholder styleA-DDUN
Tool materialSteel
