Walter

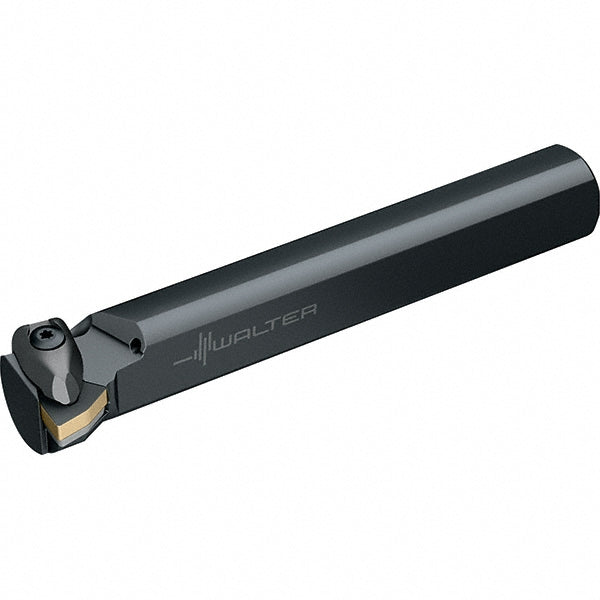

Indexable Boring - Walter 5335147
MFR# 5335147Series Walter Turn
$433.79List $498.96
Save 13%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter 5335147 indexable boring. Series Walter Turn.
Specifications
Center to cutting edge1.0000
Compatible insert shapeTrigon
Compatible insert size code0804; 43
Compatible insert thickness (mm)4.76
Coolant throughYes
Cutting tool applicationBoring
Hand of holderLeft Hand
Insert compatibilityWN.. 0804..; WN.. 43..
Insert holding methodClamp
Insert inscribed circle in1/2
Insert thickness in3/16
Lead angle95
Minimum bore diameter2.0000
Multi use toolNo
Overall length12.0000
RakeNegative
Rake angle-6.00
Shank diameter in1-1/2
StandardsANSI; ISO
Toolholder styleA-DWLN
Tool materialSteel
