Walter

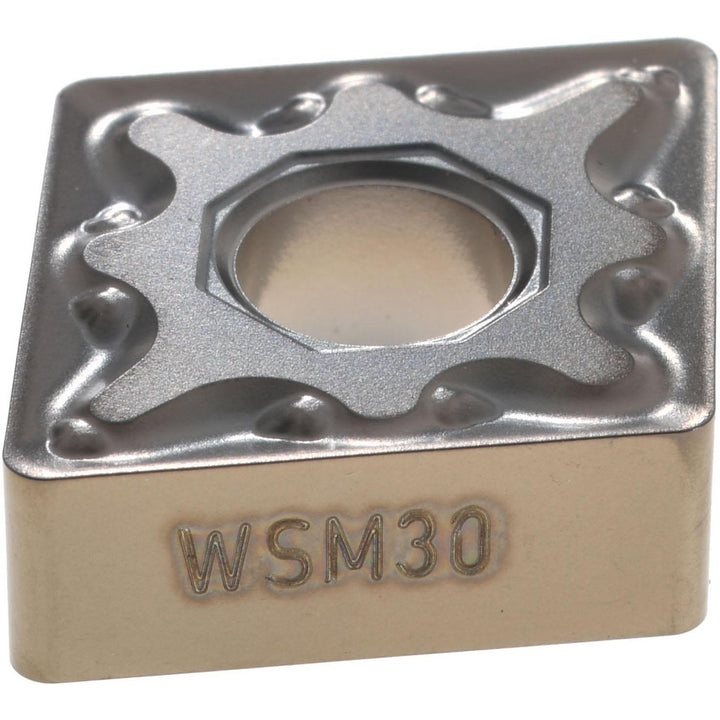

CNMG120408-NM4 WSM30 Carbide Insert, Grade WSM30, TiAlN - Walter 5354465
MFR# 5354465ISO/ANSI# CNMG120408Series CNMG-NM4
$18.44List $23.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeWSM30
MaterialCarbide
CoatingTiAlN
Description
The Walter 5354465 is a CNMG120408-NM4 WSM30 carbide indexable insert, grade WSM30, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerNM4
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberCNMG432-NM4 WSM30
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-NM4 WSM30
Iso insert codeCNMG120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number5354465
Manufacturer gradeWSM30
Material gradeM30; P30; S30
Maximum depth of cut0.1692
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialSteel
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.5080
Wiper edgeNo
